Deploying Paybill on Openshift

info

You should setup a PostgreSQL database manually to be used by Paybill.

Follow the steps below to deploy Paybill on Openshift.

  1. Setup a PostgreSQL database Paybill uses a postgres database as the persistent storage for storing data related to users and apps. We do not have plans to support other databases such as MySQL.

  2. Create a Kubernetes secret with name server. For the setup, Paybill requires:

  • PB_DB
  • PB_DB_HOST
  • PB_DB_USER
  • PB_DB_PASS
  • PG_HOST
  • PG_DB
  • PG_USER
  • PG_PASS
  • APP_KEY

Read environment variables reference

  1. Once you have logged into the Openshift developer dashboard click on +Add tab. Select import YAML from the local machine.
note

When entering one or more files and use --- to separate each definition

Copy paste deployment.yaml to the online editor

curl -LO https://raw.githubusercontent.com/paybilldev/paybill/refs/heads/master/deploy/openshift/deployment.yaml

Copy paste the service.yaml to the online editor

curl -LO https://raw.githubusercontent.com/paybilldev/paybill/refs/heads/master/deploy/openshift/service.yaml

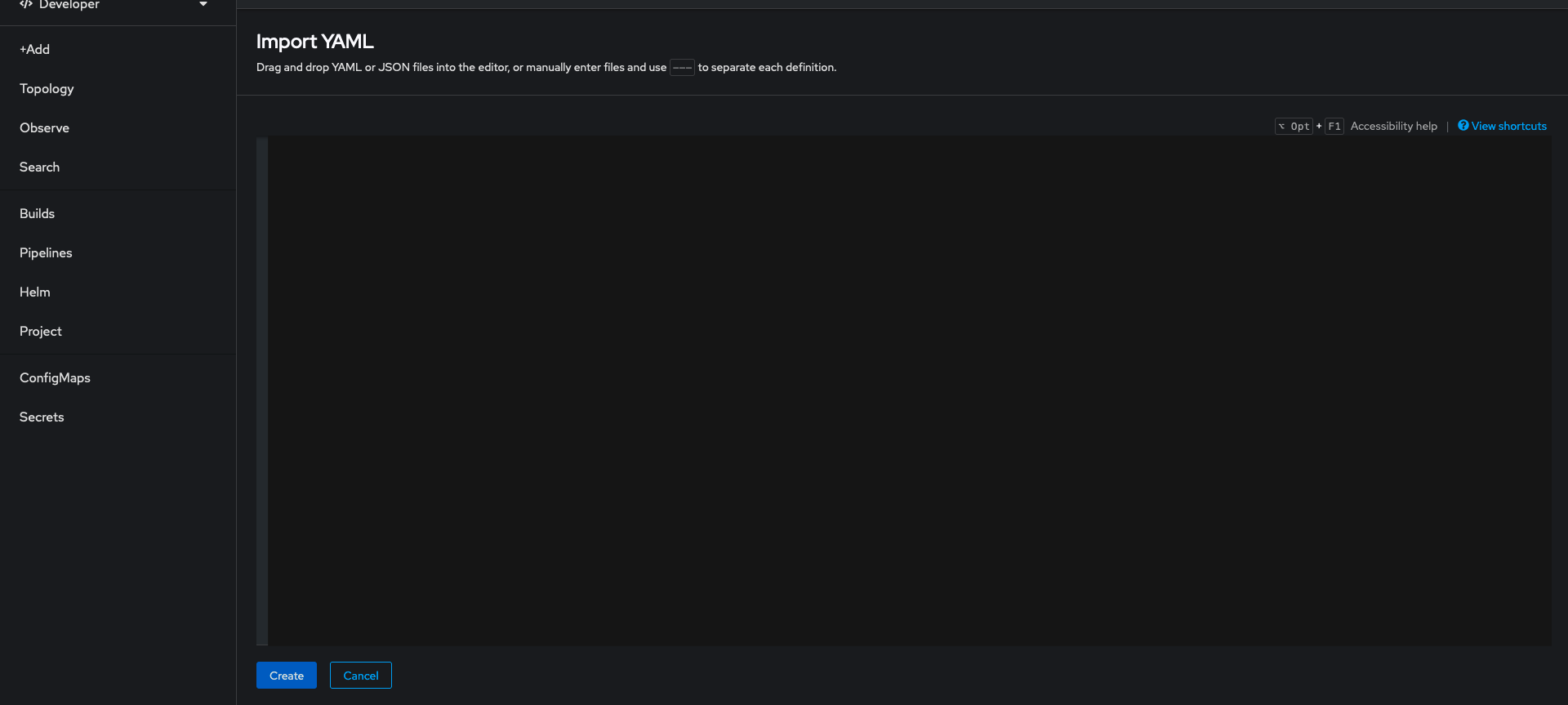

online yaml editor

Once you have added the files click on create.

info

If there are self signed HTTPS endpoints that Paybill needs to connect to, please make sure that NODE_EXTRA_CA_CERTS environment variable is set to the absolute path containing the certificates. You can make use of kubernetes secrets to mount the certificate file onto the containers.

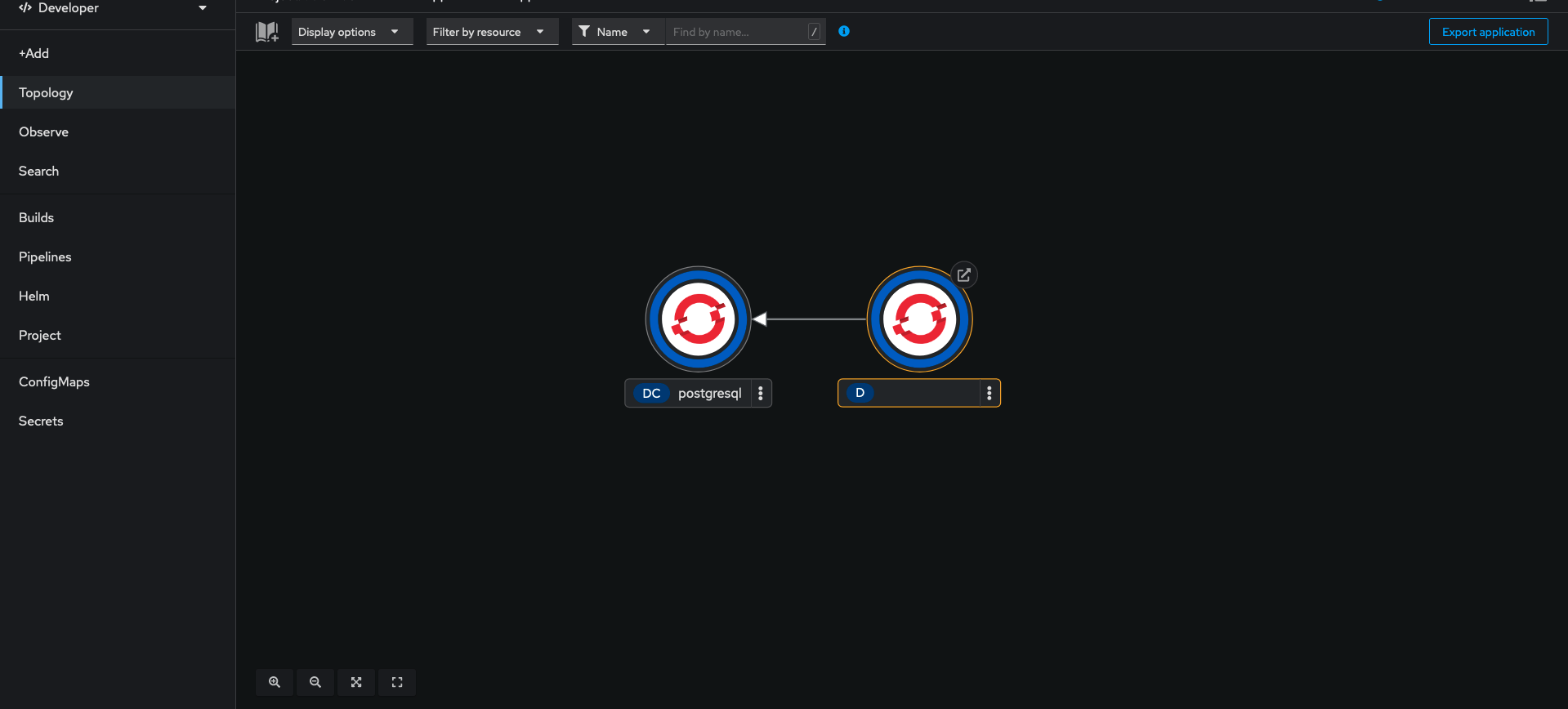

  1. Navigate to topology tab and use the visual connector to establish the connect between paybill-deployment and postgresql as shown in the screenshot below.
topology

Upgrading to the Latest LTS Version​

New LTS versions are released every 3-5 months with an end-of-life of atleast 18 months. To check the latest LTS version, visit the Paybill Docker Hub page. The LTS tags follow a naming convention with the prefix LTS- followed by the version number, for example paybilldev/paybill:ee-lts-latest.

If this is a new installation of the application, you may start directly with the latest version. This guide is not required for new installations.

Prerequisites for Upgrading to the Latest LTS Version:​

  • It is crucial to perform a comprehensive backup of your database before starting the upgrade process to prevent data loss.

If you have any questions feel free to join our Discord Community or send us an email at info@paybill.dev.
